#ASME SA516-70 N

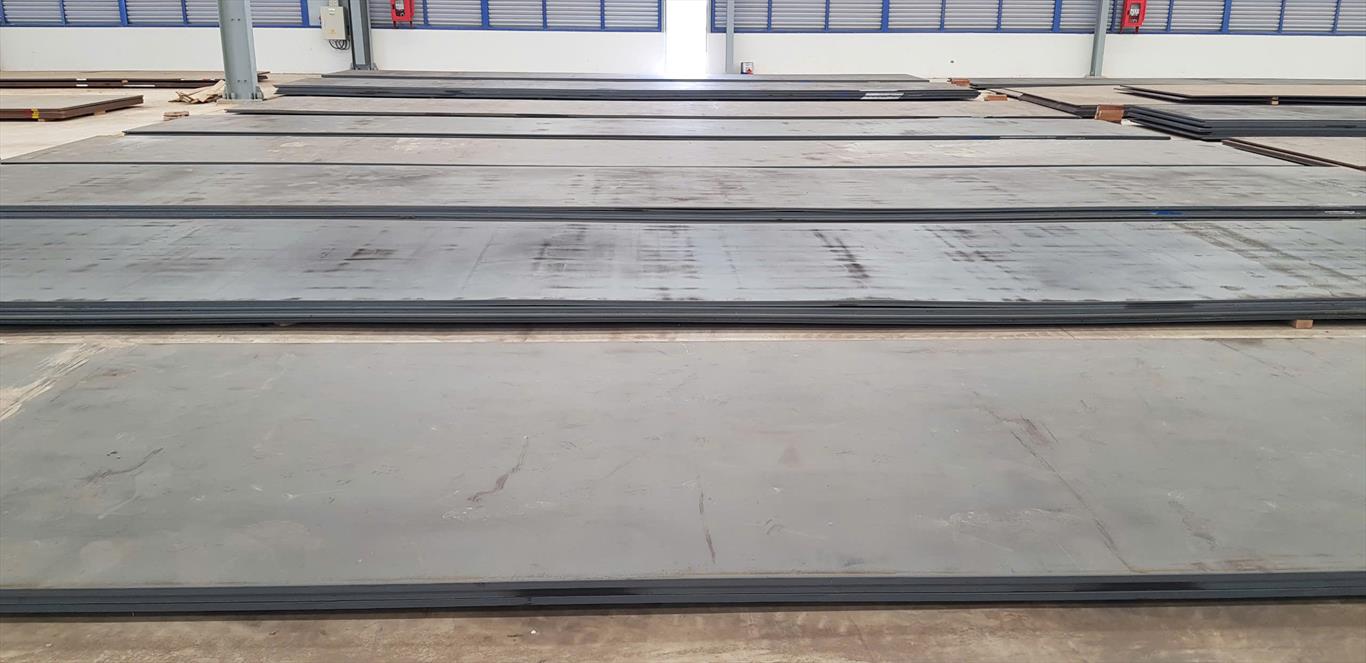

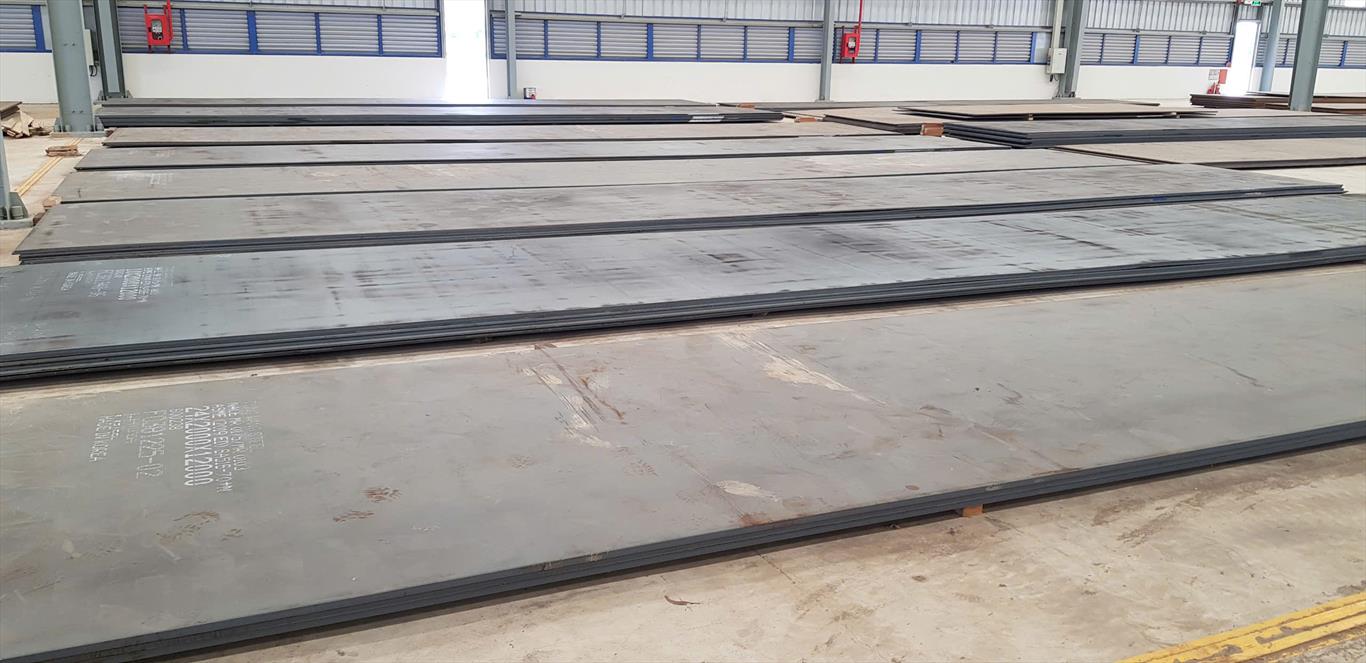

ASME PRESSURE VESSEL PLATE
Tung Wang Steel Co.,Ltd. is professional supplier of pressure vessel plates in accordance to ASME 's specifications.
| Mechanical properties of ASME SA516 Grade 70 | |||||
| ASME SA516 GRADE 70 | |||||
| Grade | Yield (min) | Tensile (min/max) | Charpy V-nothch | Elongation | |
| Temp (°C) | Energy (J) | % (min) | |||
| SA516 Grade 70 | 260 | 485-620 | … | … | 21 |
| Extra applies for Tung Wang's stock : | |||||
| * Normalized : 905°C in 31 minutes | |||||
| * Impact Test Charpy V-notch at -46°C, Min 27J | |||||
| * NACE MR0175/0103 for Hardness Test (under 200HB) | |||||
| Chemical Composition of ASME SA516 Grade 70 | |||||
| Chemical Composition (%, Max) | |||||
| C % | Si % | Mn % | P % | S % | |
| SA516 Grade 70 | 0.31 | 0.15-0.40 | 0.85-1.20 | 0.035 | 0.035 |
